Product parameters:
Product model: THZ-200B (refrigerated)
Constant temperature method: forced convection
Oscillation mode: Cyclone
Temperature range: 4~60 ° C (at an ambient temperature of 25 ° C)
Rotation frequency: 40-300rpm
Frequency accuracy: ± 1rpm
Sway amplitude: 26mm
Temperature control accuracy: ± 0.1 ° C (constant temperature state)
Inner liner material: corrosion-resistant 304 stainless steel
Shell material: High quality steel plate material
Control method: P I. D. Microcomputer processing chip
Setting method: Touch button setting
Display method: LCD liquid crystal display
Heating method: U-shaped heating tube
Additional features: deviation correction, menu button locking, power outage compensation, power outage memory, PID adjustable
Sensor: PT100
Safety devices: over temperature alarm, short circuit protection, overheating protection, sound and light alarm
Maximum capacity: 1000ml * 4 pieces
Standard configuration: 500ml * 3, 250ml * 3, 100ml * 4, 50ml * 4
The above configurations can be mixed and customized. For details, please consult customer service
Tray size: 450 * 410mm
External dimensions: 800 * 710 * 520mm
Packaging size:/
Power: 650W
Number of pallets: 1 piece
Timing range: 0-9999min
Power supply: AC220V ± 10% 50-60Hz
- Product Details
- Product manual

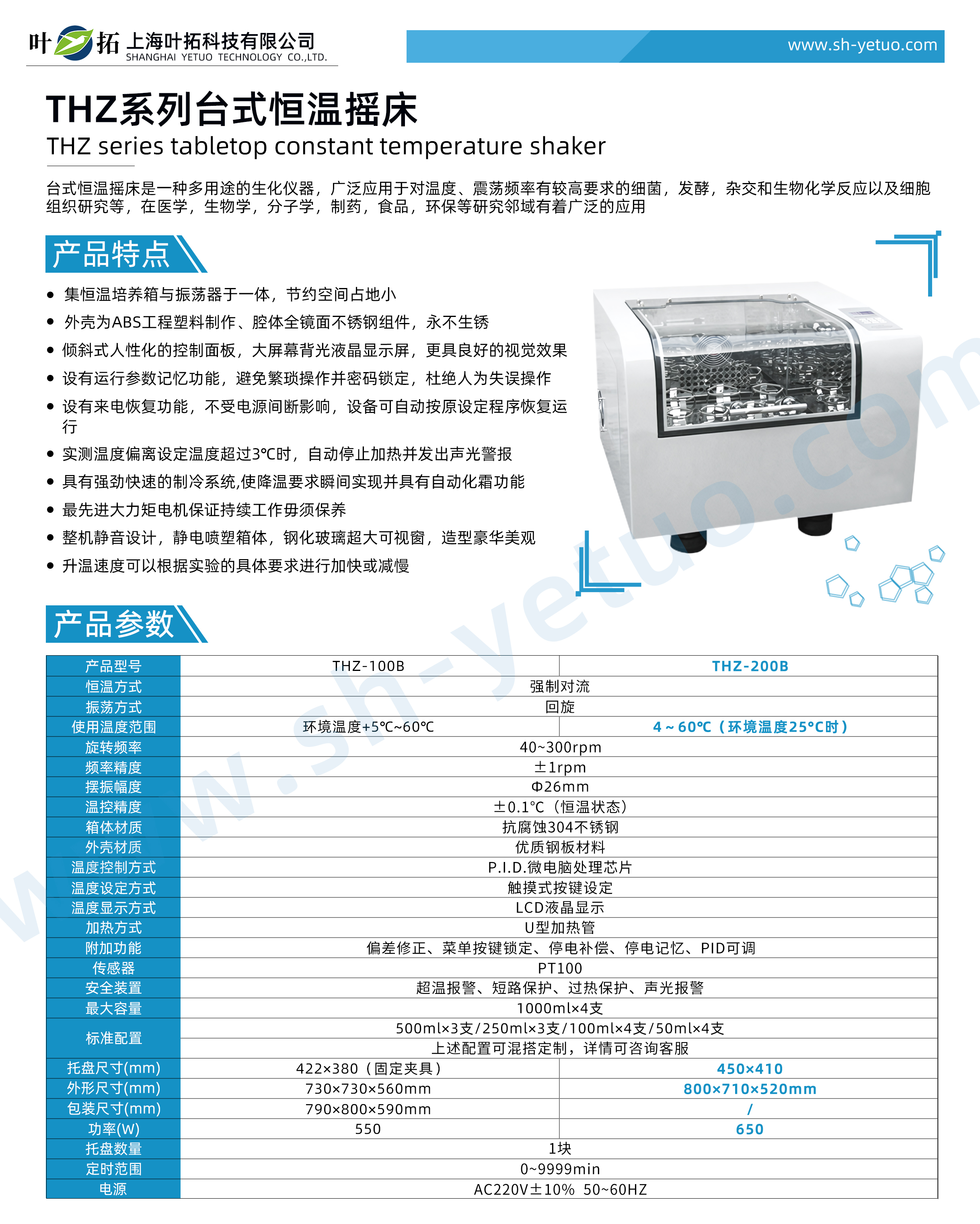

Ye Tuo THZ-200B (Refrigeratable) Desktop Constant Temperature Shaker
Model: THZ-200B (Refrigeratable)
Features of Yetuo THZ-100B Desktop Constant Temperature Shaker
Integrating a constant temperature incubator and oscillator, saving space and occupying small space
The shell is made of ABS engineering plastic, and the chamber is made of fully mirrored stainless steel components, which will never rust
● A tilted humanized control panel with a large backlit LCD screen, providing a better visual effect
Equipped with operating parameter memory function to avoid tedious operations and password locking, eliminating human error operations
Equipped with call recovery function, unaffected by power interruption, the device can automatically resume operation according to the original set program
When the measured temperature deviates from the set temperature by more than 3 ° C, the heating will automatically stop and an audible and visual alarm will sound
Equipped with a powerful and fast refrigeration system that instantly meets cooling requirements and has automated frost function
The most advanced high torque motor ensures continuous operation without maintenance
● Silent design for the entire machine, electrostatic spray molded box, tempered glass super large visual window, luxurious and beautiful appearance
The heating rate can be increased or decreased according to the specific requirements of the experiment
