Product Parameters:
Instrument model: YHZQ-160F
Oscillation frequency: 20~300 revolutions per minute
Amplitude: 26mm
Maximum capacity (single-layer): 500mlx12 or 250mlx20 (fixed fixture)
Standard configuration: Universal spring mesh frame
Tray size (mm): 520x360mm (double-layer)
Timing range: 0-999 minutes/hour
Constant temperature range: 4 ℃~60 ° C (at room temperature of 23~25 ℃)
Constant temperature accuracy: ± 0.1 ℃
Temperature uniformity: ± 0.5 ℃
Digital display mode: LCD
Input power: 1500W
Dimensions (mm): 670x620x1320 (mm)
Weight: 150kg
Power supply: 220V 50Hz
Lighting: 8W
Capacity: 150L
Note: Using an intelligent temperature controller, users can set their own methods according to the instructions to improve issues such as overshoot caused by different climate conditions in the south and north
- Product Details
- Product manual

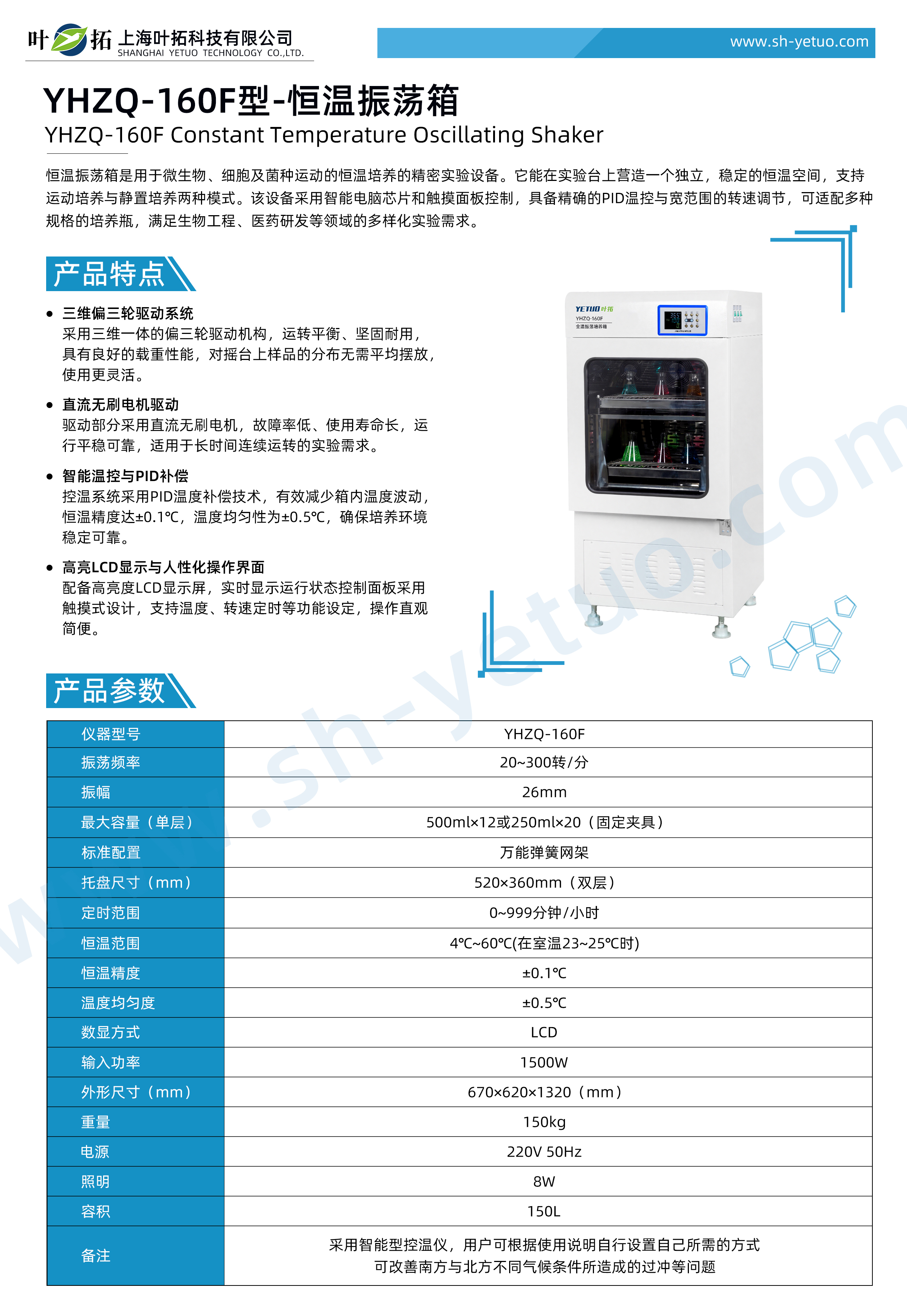

Yetuo YHZQ-160F Constant Temperature Oscillatory Box
Model: YHZQ-160F
Product Overview:
A constant temperature oscillation box is a precision experimental equipment used for constant temperature cultivation of microorganisms, cells, and bacterial strains. It can create an independent and stable constant temperature space on the experimental bench, supporting both motion cultivation and static cultivation modes. This device is controlled by intelligent computer chips and touch panels, with precise PID temperature control and wide range speed adjustment. It can adapt to various specifications of culture bottles and meet the diverse experimental needs of fields such as biotechnology and pharmaceutical research and development.
Product features of Yetuo YHZQ-160F constant temperature oscillation box
3D biased three wheel drive system
Adopting a three-dimensional integrated three wheel drive mechanism, the operation is balanced, sturdy and durable, with good load-bearing performance. It does not require even placement of samples on the shaking table, making it more flexible to use.
● DC motor drive without distinction
The driving part adopts DC brushless motor, which has low failure rate, long service life, stable and reliable operation, and is suitable for experimental needs of long-term continuous operation.
Intelligent temperature control and PID compensation
The temperature control system adopts PID temperature compensation technology, effectively reducing temperature fluctuations inside the box. The constant temperature accuracy reaches ± 0.1 ℃, and the temperature uniformity is ± 0.5 ℃, ensuring a stable and reliable cultivation environment.
High brightness LCD display and user-friendly interface
Equipped with a high brightness LCD display screen, the real-time operation status control panel adopts a touch based design, supports temperature, speed timing and other function settings, and the operation is intuitive and simple.
