Product Parameters:
Instrument model: YHYG-EA
Oscillation frequency: 20~300 revolutions per minute (the same for each layer)
Amplitude: 26mm
Maximum capacity (single-layer): 1000mlx8 or 500mlx15 or 250mlx24
Standard configuration: Universal spring mesh frame
Tray size (mm): single-layer 500x360mm
Timing range: 0~9999 minutes/hour (can be timed in multiple stages)
Constant temperature range: 4 ℃~60 ° C (at room temperature of 23~25 ℃)
Constant temperature accuracy: ± 0.1 ℃
Temperature uniformity: ± 0.5 ℃
Digital display mode: LCD (touch screen)
Input power: Single layer 1200W
Dimensions (mm): 900x660x1800 (mm) (three layers)
Weight: 420kg
Control mode: microcomputer intelligent control
Capacity: 90L
Note: The intelligent temperature controller used in this machine can be set by users according to the instructions to improve the overshoot and other problems caused by different climate conditions in the south and north
- Product Details
- Product manual

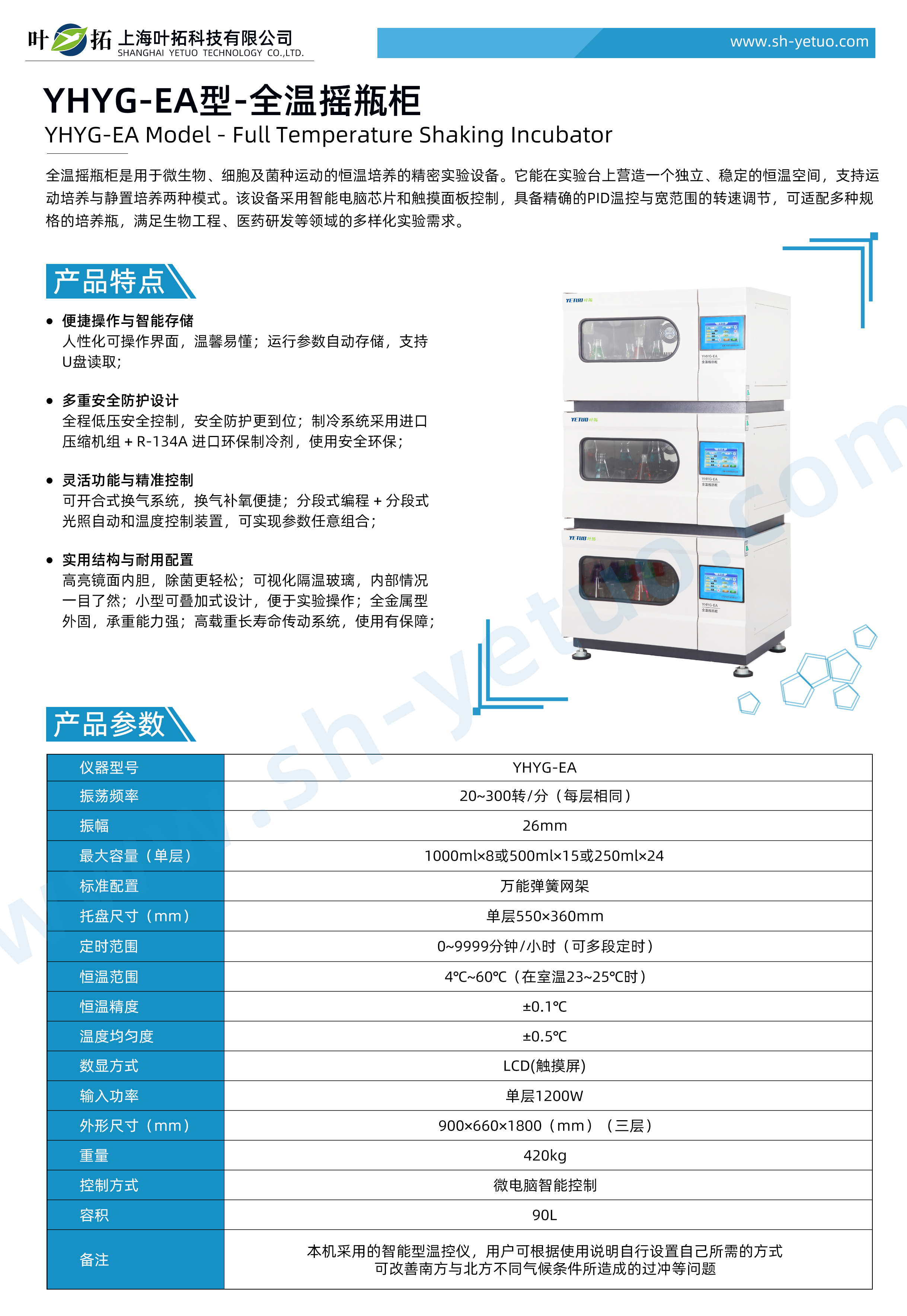

Yetuo YHYG-EA Full Temperature Shake Bottle Cabinet
Model: YHYG-EA
Product Overview:
The full temperature shaking bottle cabinet is a precision experimental equipment used for constant temperature cultivation of microorganisms, cells, and bacterial strains. It can create an independent and stable constant temperature space on the experimental bench, supporting both motion cultivation and static cultivation modes. This device is controlled by intelligent computer chips and touch panels, with precise PID temperature control and wide range speed adjustment. It can adapt to various specifications of culture bottles and meet the diverse experimental needs of fields such as biotechnology and pharmaceutical research and development.
Yetuo YHYG-EA Full Temperature Shake Bottle Cabinet Product Features
● Convenient operation and intelligent storage
Humanized and operable interface, warm and easy to understand; Automatic storage of operating parameters, supporting USB flash drive reading;
● Multiple security protection design
Low voltage safety control throughout the process, with more effective safety protection; The refrigeration system adopts imported compressor units and R134A imported environmentally friendly refrigerants, which are safe and environmentally friendly to use;
● Flexible functionality and precise control
Adjustable ventilation system, convenient for ventilation and oxygen supplementation; Segmented programming+segmented lighting automatic and temperature control device, which can achieve any combination of parameters;
Practical structure and durable configuration
High gloss mirror inner liner makes sterilization and cleaning easier; Visual insulation glass, with clear internal conditions at a glance; Small and stackable design, convenient for experimental operation; Full metal external fixation, strong load-bearing capacity; High load and long-life transmission system, with guaranteed use;
