Model: SHZ-D (III) (four tables and four draws)
Capacity: 50L
Working voltage and power: 220V ± 10% 50Hz/370W
Display mode: pressure gauge x4
Number of exhaust heads: 4
Single head suction volume: 10
Flow rate and head: 60 (L/min)/8m
Circulating water function: Yes
Tap material: PTFE
Check valve material: PTFE
Pump head material: Polypropylene
Vacuum degree: 0.098Mpa
Water tank material: ABS
Noise: ≤ 45dB
Dimensions (mm): 400x280x420
Product weight (net weight/gross weight): 17/19kg
- Product Details
- Product manual

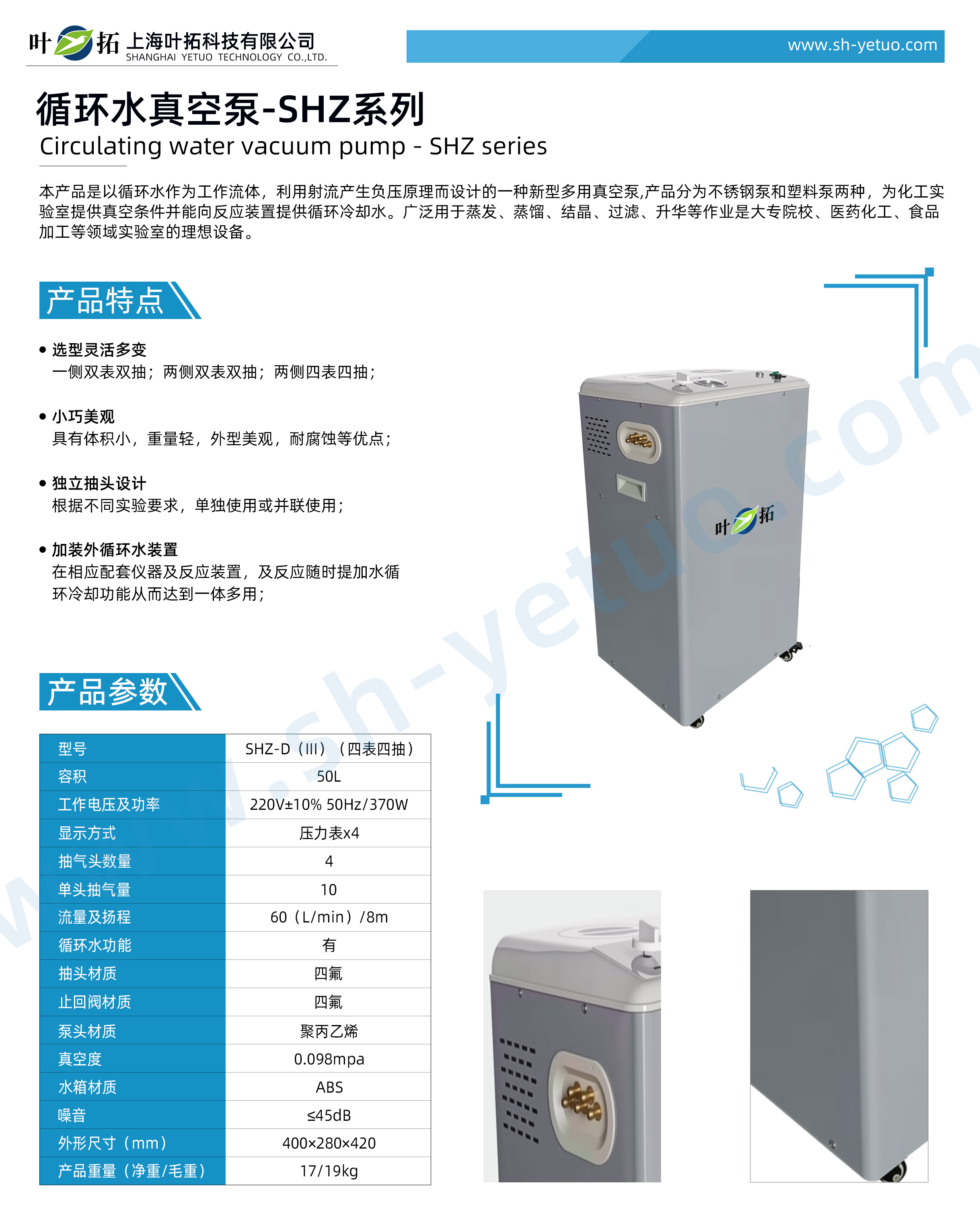

Ye Tuo SHB-D (III) (four tables and four pumps) circulating water vacuum pump
Product model: SHB-D (III) (four tables and four draws)
Product Overview:
This product is a new type of multi-purpose vacuum pump designed using circulating water as the working fluid and the principle of negative pressure generated by jet flow. The pump is divided into two types: stainless steel pump and plastic pump, providing vacuum conditions for chemical laboratories and circulating cooling water to reaction devices. Widely used in evaporation, distillation, crystallization, filtration, sublimation and other operations, it is an ideal equipment for laboratories in colleges, pharmaceuticals, chemical engineering, food processing and other fields.
Product features of Yetuo SHB-D (III) (four tables and four pumps) circulating water vacuum pump
● Flexible and versatile selection
One side dual meter dual draw; Double tables on both sides, double draw; Four tables on both sides and four draws;
● Compact and beautiful
It has the advantages of small size, light weight, beautiful appearance, corrosion resistance, etc;
● Independent tap design
According to different experimental requirements, use separately or in parallel;
● Install an external circulating water device
Provide water circulation cooling function in corresponding supporting instruments and reaction devices, and provide water circulation cooling function at any time for reaction, thus achieving multi-purpose integration;
